濟南超聲波清洗機件工件是經輸送鏈的傳動

作者：admin來源：http://www.zhuohengsh.com/時間：2021-01-05

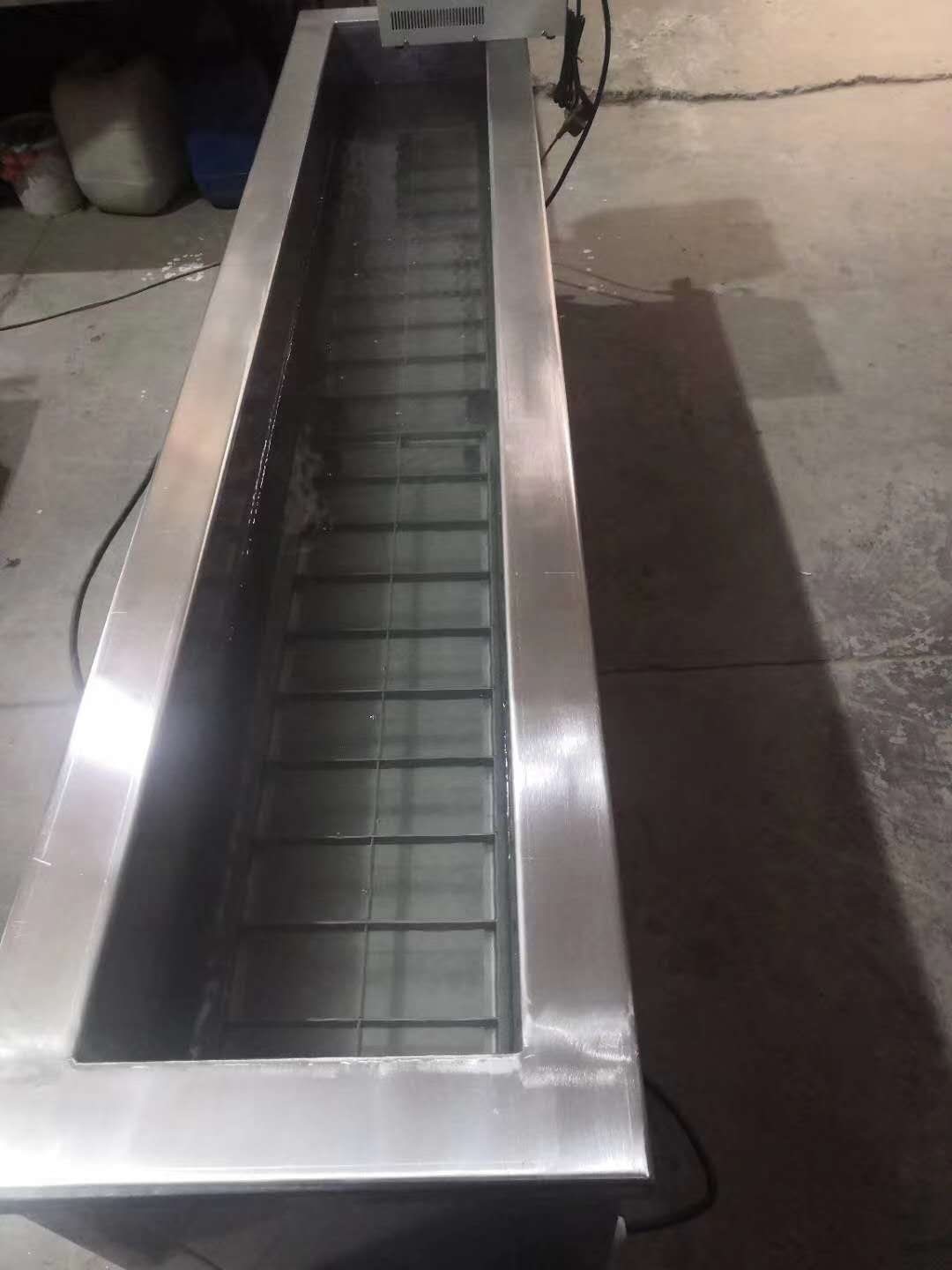

清洗器操作采用單片機清洗器主體材質為304質不銹鋼數顯產品出廠日期及累計工作時間數顯超溫度、超電壓、超電流、低水位保護指示數顯、記憶、設定超聲時間、功率、溫度、液位清洗器具有良好的密封、隔音、隔熱效果清洗器采用PTC貼片加熱方。

The main material of the washer is 304 stainless steel digital display. The date of manufacture and cumulative working time of the product are digital display. Overtemperature, over voltage, over current, low water level protection indication, memory, setting ultrasonic time, power, temperature and liquid level are indicated. The washer has good sealing, sound insulation and heat insulation effect. The washer adopts PTC patch heating method.

濟南超聲波清洗機

Jinan ultrasonic cleaning machine

節約用電能耗.:標準噴淋循環過濾超聲波清洗,整機帶有慢拉自動哄干,自動進料和出料,單槽多工位超聲波清洗機超聲波清洗機適用范圍：電鍍零件鍍前及鍍后清洗、五金除油除臘、鐘表、電子零件、首飾、光學鏡片、硅片、機械、塑料、模具、噴絲板過濾芯等的清洗。

Save energy consumption: standard spray circulation filtration, ultrasonic cleaning, the whole machine with slow pull, automatic coax dry, automatic feeding and discharging, Application scope of ultrasonic cleaning machine: cleaning of electroplating parts before and after plating, degreasing and wax removing of hardware, cleaning of clocks and watches, electronic parts, jewelry, optical lenses, silicon wafers, machinery, plastics, molds, spinneret filter elements, etc.

該設備采用懸掛式的清洗方式，用懸掛式進行不定位清洗，烘干、清洗效率好，方便烘干，整個線體為環形式，工人在上料處將工裝框掛上輸送鏈，工件經輸送鏈的傳動自動經過上料 → 超聲波粗洗槽 → 噴淋過水1槽 → 超聲波精洗槽 → 噴淋過水2槽→ 鼓泡純水槽 → 滴液區 →干燥 → 下料后進入到下料處，工人將工件從掛具上取下來即可，空掛具隨輸送鏈繼續行進進行下一個循環，此設備清洗效率高，既節省電能；又減少故障率，深入理解設計的除油、實用有效。

The whole line is in the form of ring. The workers hang the tooling frame on the conveying chain at the feeding place. The workpiece automatically passes through the feeding → ultrasonic rough washing tank → spray water 1 tank → ultrasonic fine washing tank → spray water 2 tank → bubble pure water tank through the transmission of the conveying chain The equipment has high cleaning efficiency, which can not only save electric energy, but also reduce the failure rate, and deeply understand the de oiling and practical effective design.
